Web Mercator – the challenge you never knew you had?

How to solve a Tableau “distortion” in Alteryx

The Earth is a geoid – a 3D shape closely resembling a sphere. In order to represent this 3D object on a 2D plane (a paper map or a computer screen) it is necessary to “flatten” the object in some way. There are many, many ways in which we can “flatten” the 3D object. Each way produces a slightly different view of the Earth, and preserves slightly different characteristics of the sphere:

  • Area
  • Shape
  • Direction
  • Distance

It is impossible to preserve both angle (direction) and area on the same flat map.

With spatial data in a shapefile, it is possible to view which method (or “projection”) is in play by inspecting the associated .prj file. Take a look at this blog post to figure out what the different file extensions mean.

Right click and open the .prj file with a text editor (notepad is fine) and you will see:

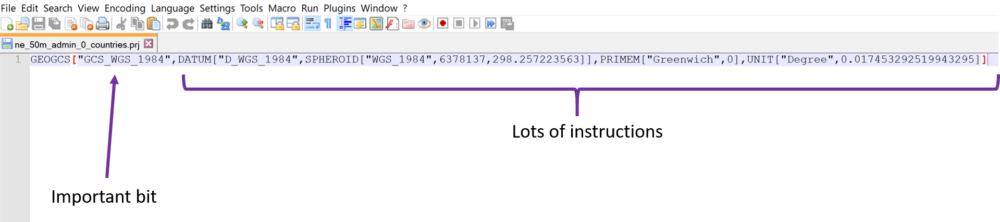

The view from within a .prj file

These are the instructions and parameters that tell the piece of software being used how to flatten the 3D shape and how to relate elements of it in space. Each projection has a different set of instructions. Tableau, however, is currently able to display one of these projections – Web Mercator. Even if the shapefile has a different set of “instructions” Tableau will convert it to Web Mercator before displaying it.

What does this mean?

  • For small areas (cities, for example) the distortion produced by the projection will be functionally negligible;
  • Larger areas produce distortions that become much more severe towards the poles – those land masses will appear much larger than they actually are;
  • In the example below, Greenland appears to be equal in size to the continent of Africa but Africa is actually around 15 times larger

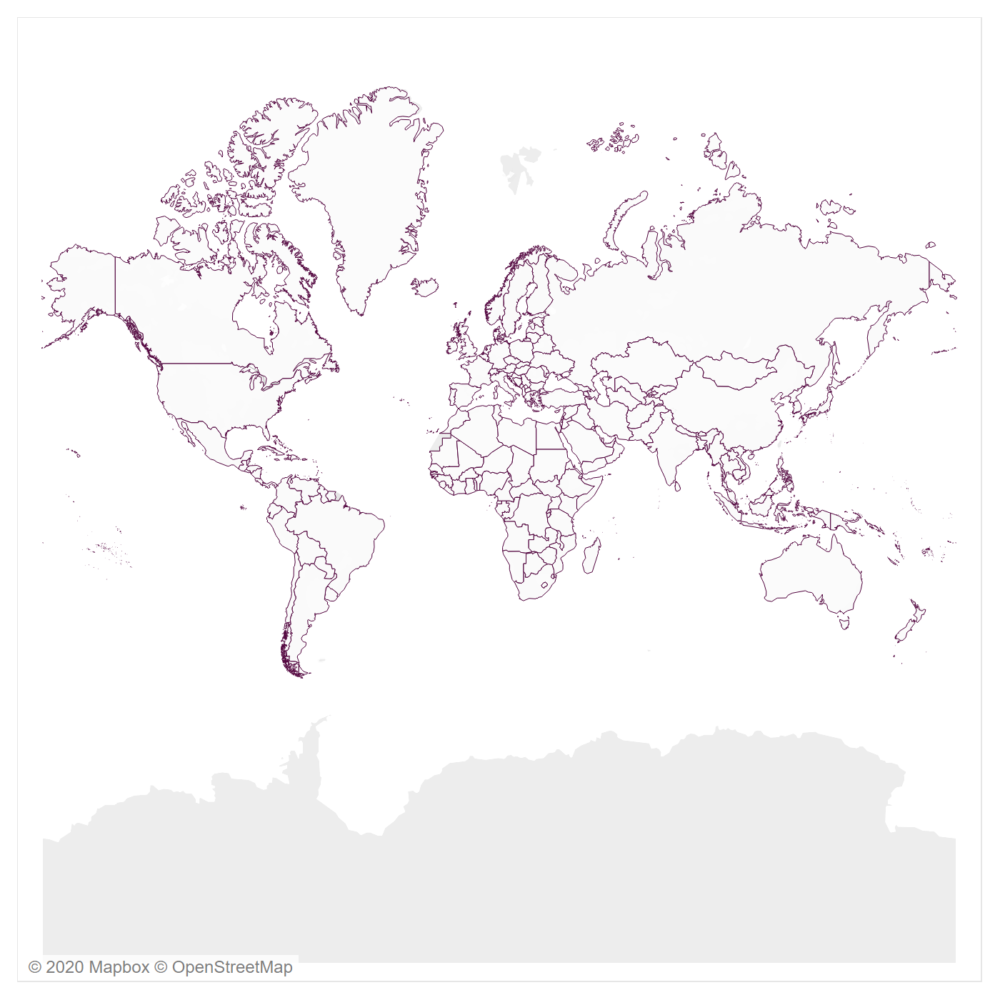

The world as Web Mercator in Tableau. Visit this website to view the distortion in an interactive way

Why does this matter?

  • It may stifle creativity! Want to create a viz centred on Antarctica like Adam or Ellie? It is not possible natively in Tableau
  • It (more importantly) introduces misleading elements to any map that includes population. Reading this blog from ESRI cartographer Kenneth Field is highly recommended

How can it be remedied?

We need to find a way to stop Tableau altering the shape of the data when it is displayed. For the full background theory and a method that does not use Alteryx, please enjoy this blog from Tableau research scientist Sarah Battersby.

For global views;

  • Download country boundaries from natural earth and unzip. Keep all files in the extraction in the same place
  • Check the projection of the shapefile in question (using a text editor)
  • Read the shapefile into Alteryx using the same projection

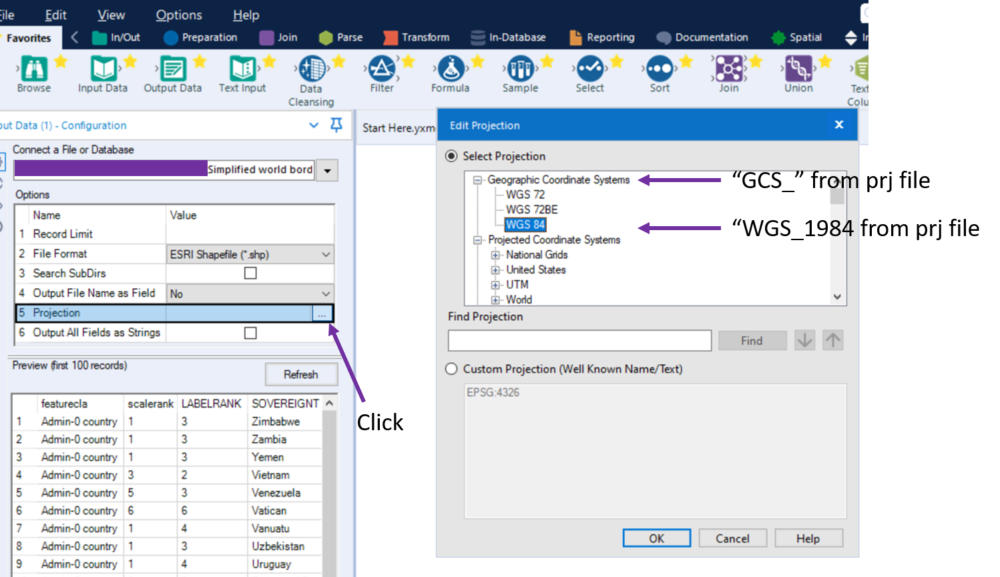

Read in file with .shp extension to Alteryx

  • Output the shapefile to a new location using the projection required (equal area projections are recommended for mitigating misleading effects in maps of population)

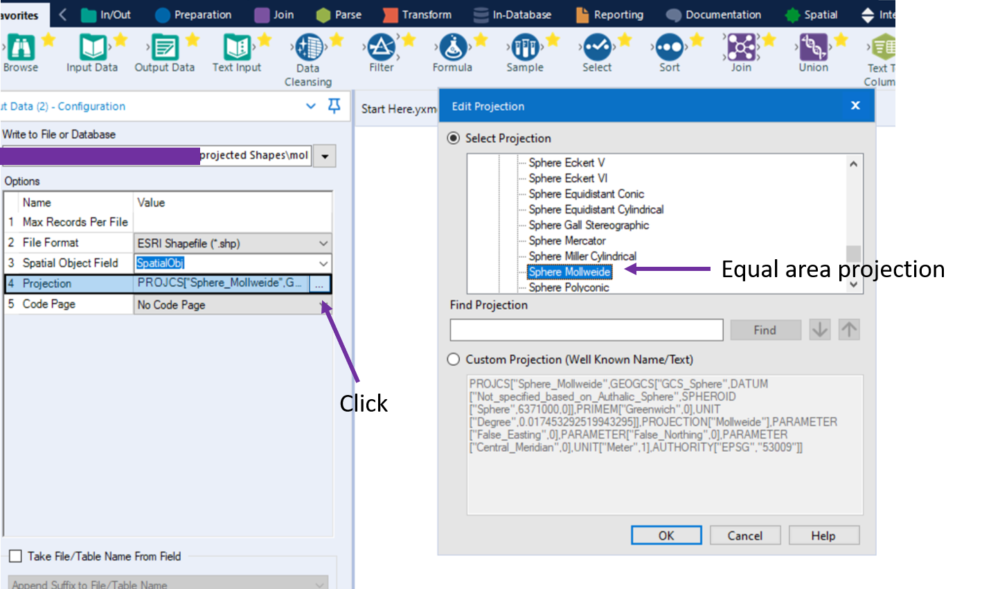

Output as .shp file with selected projection

  • Edit the .prj file text. Overwrite the text with:

PROJCS[“WGS 84 / Pseudo-Mercator”,GEOGCS[“Popular Visualisation CRS”,DATUM[“D_Popular_Visualisation_Datum”,SPHEROID[“Popular_Visualisation_Sphere”,6378137,0]],PRIMEM[“Greenwich”,0],UNIT[“Degree”,0.017453292519943295]],PROJECTION[“Mercator”],PARAMETER[“central_meridian”,0],PARAMETER[“scale_factor”,1],PARAMETER[“false_easting”,0],PARAMETER[“false_northing”,0],UNIT[“Meter”,1]]

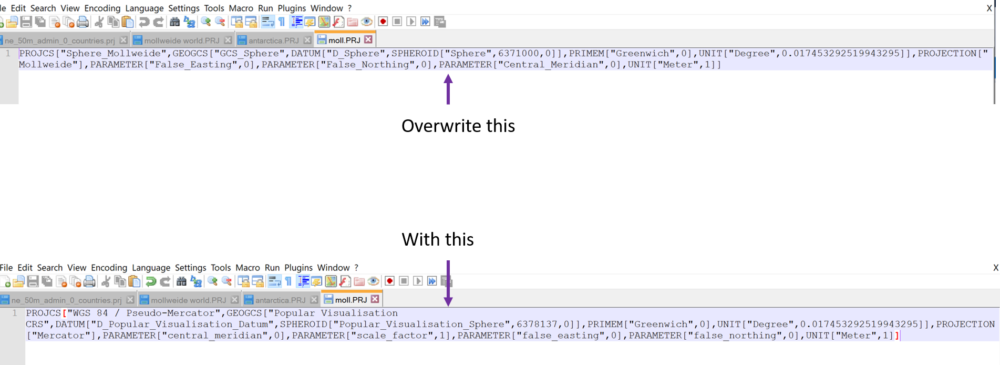

Overwrite the text in the .prj file
  • Save the text file

This is the crucial step that will stop Tableau from trying to alter the underlying data to fit the Web Mercator projection.

  • Connect to the shapefile in Tableau. Double click the [Geometry] field and wash out the background map entirely

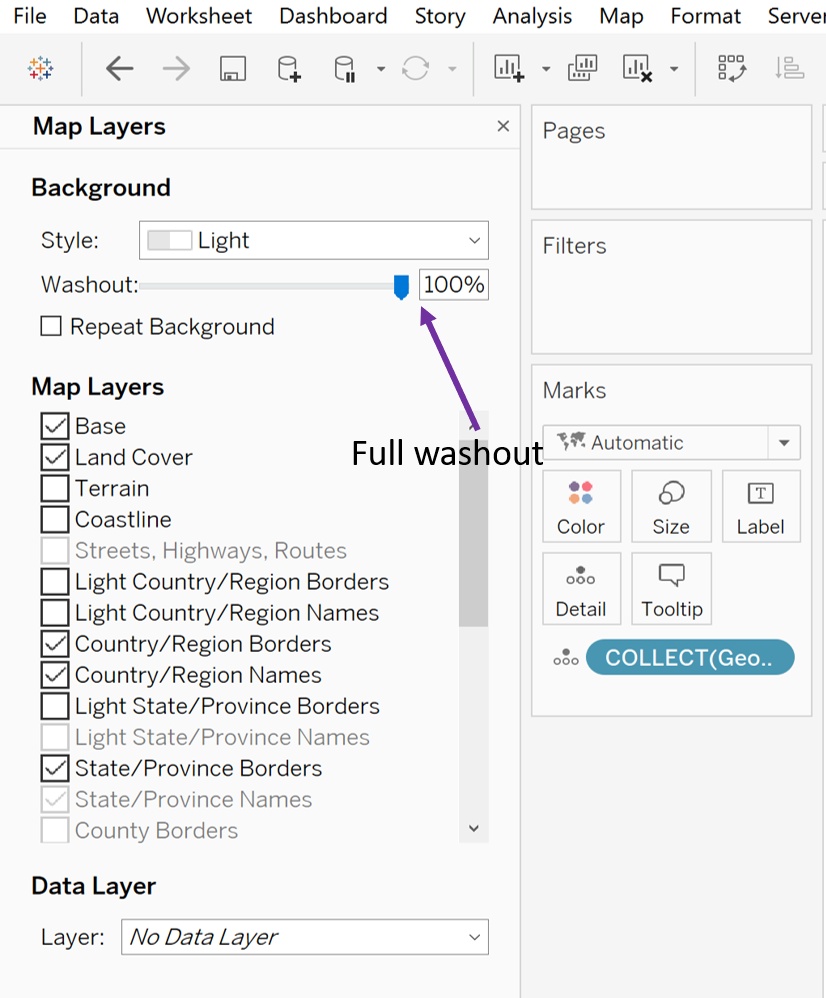

Remove the base map layer by washing out to 100%

Et voila. Magic in Tableau

An equal area projection in Tableau

For local views;

There are many projections that are used for countries or continents (sub-global scale). Each fits a particular purpose. Select an appropriate projection for your purpose. In this example, Polar Stereographic is used to output an Antarctic – centred view for Tableau.

  • Download country boundaries from natural earth and unzip. Keep all files in the extraction in the same place
  • Check the projection and load into Alteryx, selecting the appropriate projection
  • For Polar Stereographic it is impossible to display the entire Earth. Select out relevant countries – Antarctica, and perhaps Argentina or New Zealand

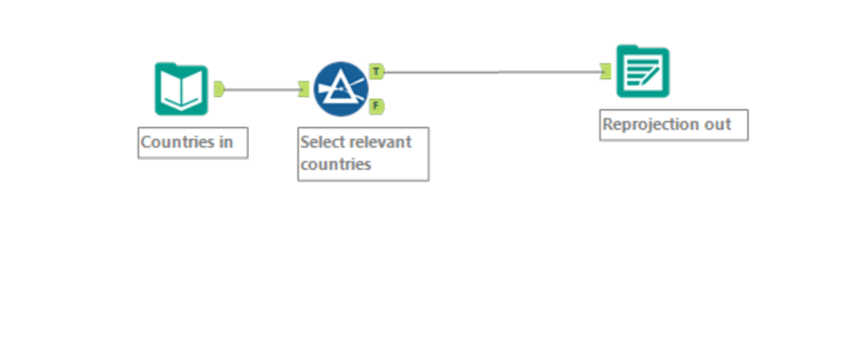

Select out relevant countries if required

  • Output the shapefile to a new location using the projection required

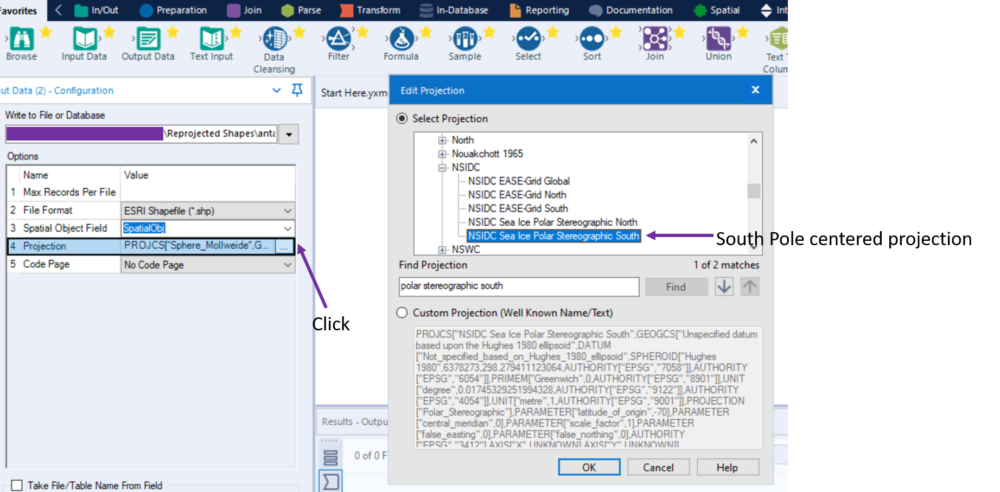

Output file as .shp from Alteryx in chosen projection

  • repeat the step (above) of overwriting the .prj content with

PROJCS[“WGS 84 / Pseudo-Mercator”,GEOGCS[“Popular Visualisation CRS”,DATUM[“D_Popular_Visualisation_Datum”,SPHEROID[“Popular_Visualisation_Sphere”,6378137,0]],PRIMEM[“Greenwich”,0],UNIT[“Degree”,0.017453292519943295]],PROJECTION[“Mercator”],PARAMETER[“central_meridian”,0],PARAMETER[“scale_factor”,1],PARAMETER[“false_easting”,0],PARAMETER[“false_northing”,0],UNIT[“Meter”,1]]

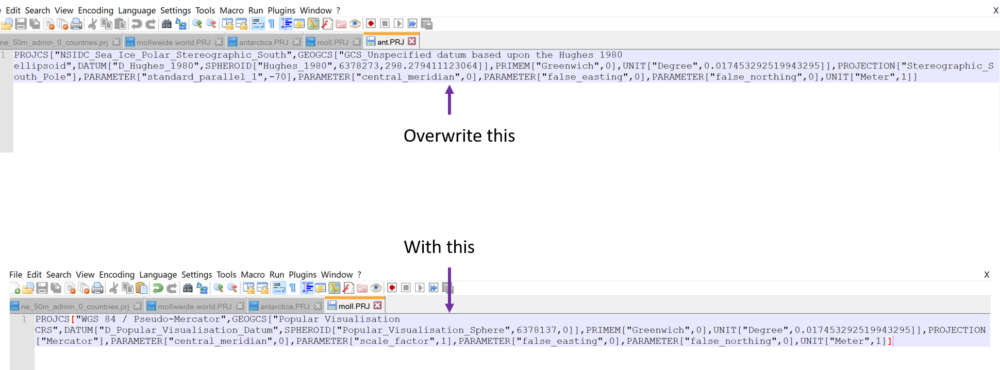

Overwrite the text in the .prj file
  • save this new text in the prj file
  • connect to the spatial file in Tableau. Double click the [Geometry] field and wash out the background map entirely

Voila. More mind-bending magic.

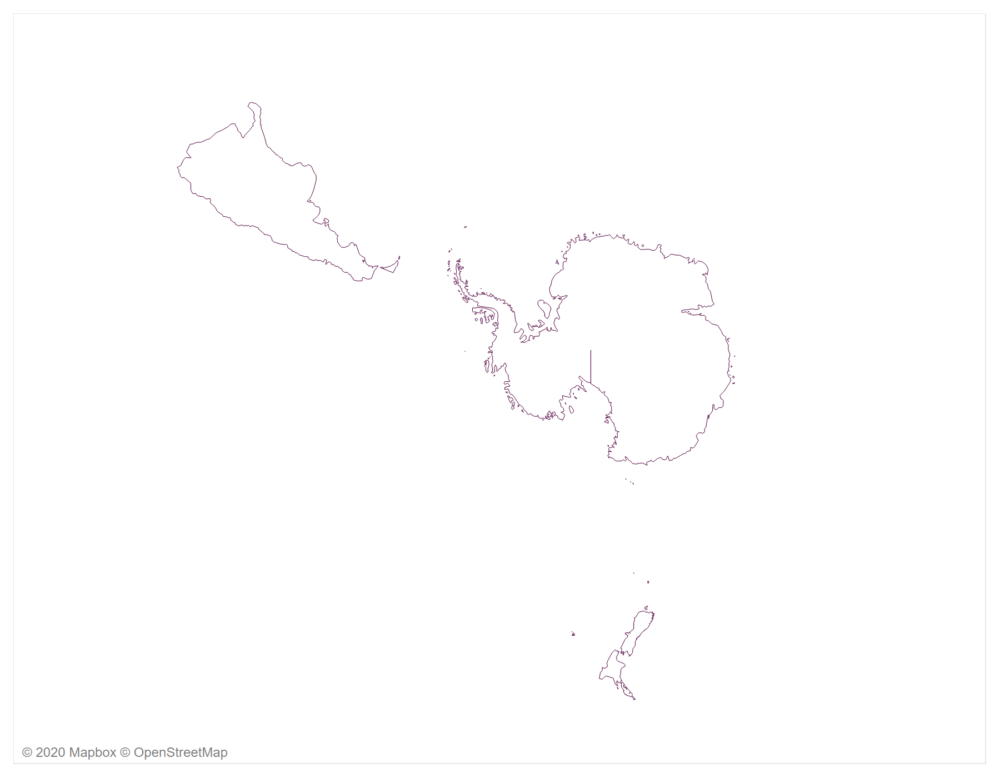

Polar stereographic projection in Tableau – Antarctic-centred

Enjoy your new-found freedom! Use it well.

Adi McCrea

London, UK
