Project Griffon: Workbook Access Frequency

UPDATE 2023: Griffon has evolved! Our efforts to help people understand Tableau Server Usage is now part of the Tableau Exchange here – https://exchange.tableau.com/en-GB/products/643

With Project Griffon, we want to share examples and started with you – the Tableau Community. The objective here is to share tools which use what you have in front of you to help explain more about what’s going on. Please be sure to read the introduction to Project Griffon, and ensure that you have access to the Tableau Server Repository via the Postgres connection.

What’s going on? I need intel!

The biggest benefit that the Tableau Server Repository brings is the ability to find one who is viewing what, and when. So when my colleagues in The Information Lab Italy had a customer wanting to find out more about the frequency of access by a Tableau Server user on specific projects and workbooks.

This sort of intelligence is available in the pre-rolled, built in Tableau Server views, but it’s not the best in terms of trying to ask and answer questions.

However, the datasources which drive them?

They’re gold.

Talking about Audit Tables.

The ‘Audit Tables’ data connection drives a lot of the built-in administrative views. It contains ‘event’ level data across workbooks, datasources, projects and sites.

It looks a bit like this:

Again, fairly busy – but as always the workbook is available for download for you all to plug and play.

A note on  the hist_ tables – this contains historical information about events on your Tableau Server. This is defaulted to about 6 months worth of data (or 183 days) – but this can be changed depending on your desire using tsm/tabadmin set commands. Be warned: Given Tableau Server collects a lot of information in the historical tables, this may bloat your server. So exercise caution before setting this expiration to the beginning of time…

tsm configuration set -k wgserver.audit_history_expiration_days -v <config value>

Show us the good stuff!

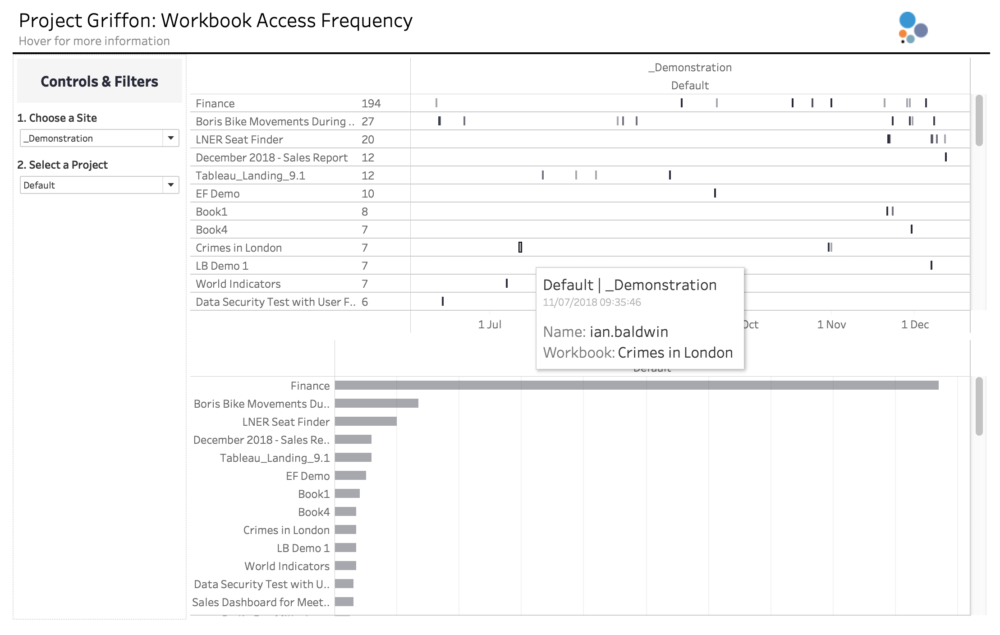

The viz itself is quite simple. The objective was to dig into Sites and Projects, and find out which users are accessing a view. This is clearly a very quick starter for 10 – there’s lots more that can be done with Groups, or the search and highlighting users… but in a very broad sense it works.

The controls and filters on the left are single select dropdowns, with the top chart sorted by total ‘Access’ to the View – this excludes subscriptions etc I believe.. Each dot represents a unique username who has accessed that specific workbook. As mentioned, an extension to this would be highlighting users or even going down to  a view – specific level

The bottom section looks at the workbooks again, and the total number of views. This focuses upon the top level popularity of the workbook. I’ve attempted to replicate the sparkline chart you see on Tableau Server when you hover over a workbook or a view.

Share the love!

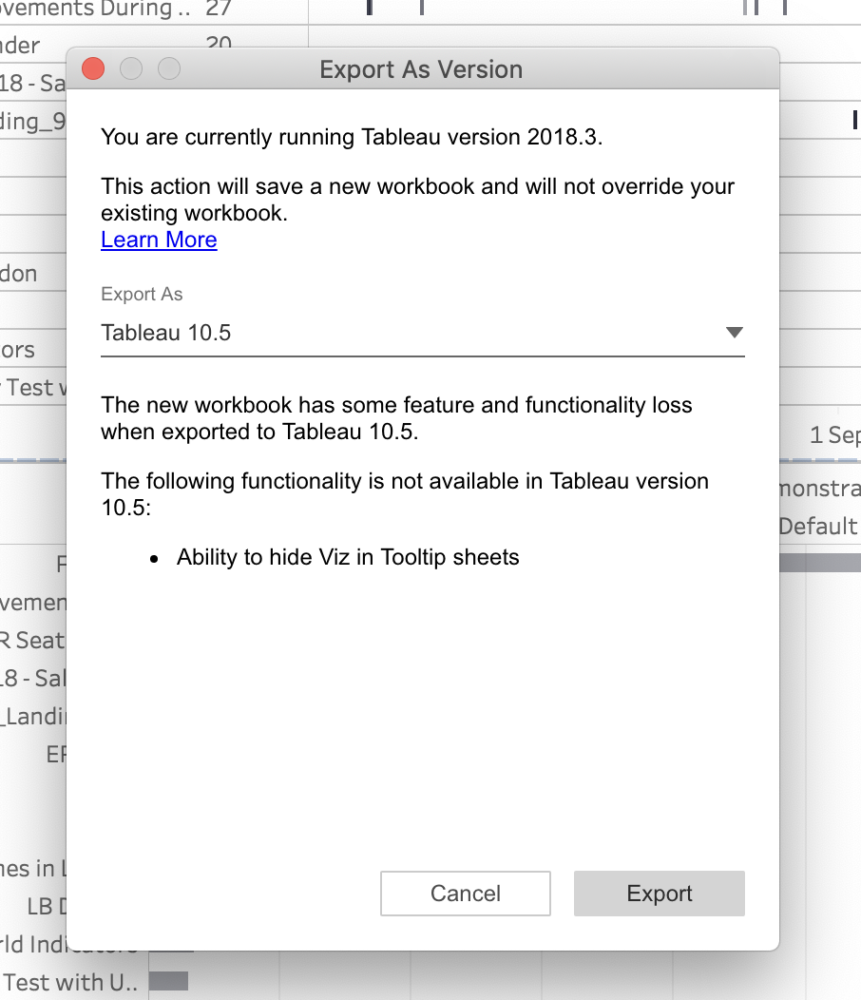

Hit this link (Workbook Access Frequency_v10.5) to download the workbook. I’ve uploaded this as a Tableau Desktop 10.5 file as I’ve used Viz in Tooltip as a functionality – also discovered this neat feature while doing so!

Don’t forget to change the repository details in the datasource details window, adding your password of course.

Please do share your feedback and experiences, and stay tuned for more #ProjectGriffon goodness!

Ravi Mistry

London, UK

2 thoughts on “Project Griffon: Workbook Access Frequency

  1. Is there a way to do this without a Tableau Server Repository via the Postgres connection? I have access to the following data sources, TS Background Tasks, TS Content, TS Data Connections, TS Events, TS Users. I’m a site admin but they won’t give me access to the Postgres connection.

    1. Hi Jason,

      I’m afraid that without the Postgres connection, it’s impossible to do this (unless you are using Tableau Online, in which case you can have the Tableau Online Insights be generated)

      What is their reasoning for forbidding access? Could you explain to them the richness of information and insight which is pivotal?

      Could they not give you the credentials, but instead create and curate datasources for you to use instead?
